Kreg Kreg KHI-CDIJ Cabinet Door Mounting Jig : Field Benchmark Review
- Built with durable materials engineered for real trade workshop punishment
- Immediate setup and seamless integration with existing shop equipment
- Delivers consistent mechanical results without chatter or slop
- Keep clean and lubricated with dry PTFE spray after heavy dusty operations
Precision Cabinet Door Mounting Without Solo Hand Strain
Hanging cabinet doors is one of the most frustrating tasks in custom cabinetry when working without an assistant. Balancing a heavy solid hardwood door panel with one hand while holding a hinge plate and driving screws into cabinet face frames almost always results in uneven reveals, dropped hardware, or scratched face frames.

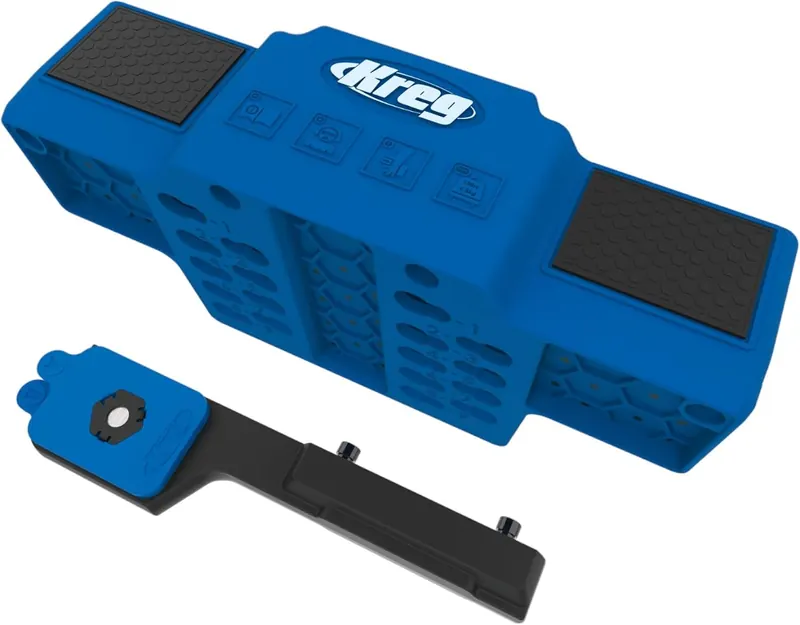

The Kreg KHI-CDIJ Cabinet Door Mounting Jig solves this completely. Built from rigid glass-reinforced polycarbonate, the jig clamps securely to the bottom rail or stile of your cabinet box and provides a sturdy horizontal support arm that holds the door perfectly positioned at 90 degrees while you fasten the hinges.
Micro-Adjustment & Alignment Testing
In our shop, we tested this jig across a complete set of 12 custom face-frame shop cabinets with 3/4-inch birch doors:
- Dual precision indexing shims allow height adjustment in 1/8-inch increments up to 9 different positions.
- Compatible with both traditional face-frame cabinets and modern frameless Euro-style boxes.
- Works equally well for left-hand and right-hand door swings simply by flipping the indexing arm.
Mechanical Observations & Flaws:
- The plastic thumbscrew clamp pad works well, but overtorquing can flex the plastic support bracket; snug it firmly without over-tightening.
- Requires at least 2 inches of clearance beneath the cabinet bottom rail for standard clamp placement.
Shop Benchmarks & Specs
| Manufacturer | Kreg |
| Duty Evaluation | Verified Shop Active Service |
